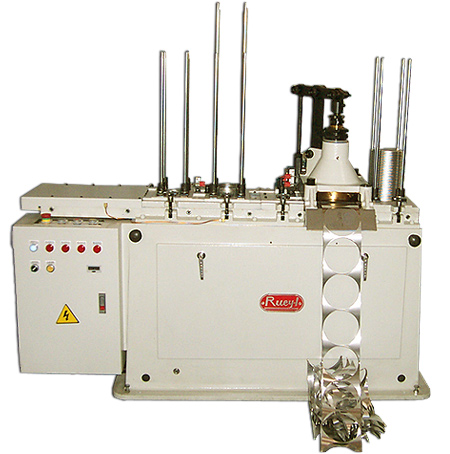

AUTOMATIC ALUMINUM FOIL ASSEMBLY MACHINE |
MODEL: |
R-A630 |
R-A630L |
Range of cap diameter |
mm |
401D~603D |
502D~715D |
Aluminum foil thickness |
mm |
0.05~0.10 |
0.05~0.10 |
Aluminum coil max outer |
mm |
270 |
270 |
Aluminum coil core |
mm |
76 |
76 |
Aluminum foil max width |
mm |
175 |
220 |
Capacity per min |
cpm |
UP TO 60¡]80¡^ |
UP TO 60 |
Horse power required |
HP |
2HP¡Ñ6P¡]3HP¡Ñ4P¡^ |
3HP¡Ñ6P |
Floor space overall height |
mm |
1680¡Ñ1035¡Ñ1580 |
2080¡Ñ1335¡Ñ1580 |
Net weight¡]approx¡^ |
kgs |
1000 |
1200 |
.......................................................................................................................................................................................................................................................
The information is subject to change without prior notice |
|
|
