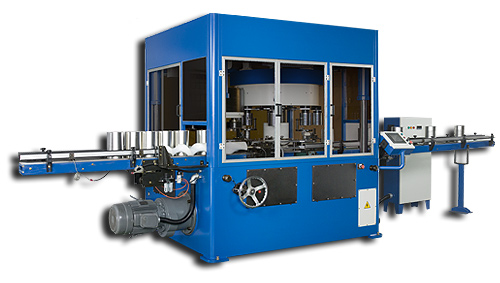

| AUTOMATIC VERTICAL TYPE SPINE-FLANGING BEADING MACHINE |
| MODEL: |
R-A482S |
R-A482 |
| Head |
. |
3H-4H |
6H-8H |
| Range of can diameter |
. |
401D~715D |
401D~715D |
| Range of can height |
mm |
100~270 |
100~270 |
| Capacity per min |
cpm |
150 |
300 |
| Horse power required |
HP |
15HP¡Ñ4P |
15HP¡Ñ4P |
| Floor space overall height |
mm |
3445¡Ñ2050¡Ñ2320 |
3445¡Ñ2050¡Ñ2320 |
| Net weight¡]approx¡^ |
kgs |
12800 |
13600 |
.......................................................................................................................................................................................................................................................
| The information is subject to change without prior notice |
|
